    One Unit Design Plastic Resin Dryers , Stainless Steel Dryer THD Series

    Ask Lasest Price
    Brand Name : TOP-Star
    Model Number : THD Series
    Certification : ISO9001,Europe-CE,
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 300per month
    Delivery Time : 10 working days
    • Product Details
    • Company Profile

    One Unit Design Plastic Resin Dryers , Stainless Steel Dryer THD Series

    THD Series Stainless Hopper Dryers

    Stainless and polished one-unit design ensures material free from contamination.Itadapts "Hot Air Down-Blowing" and "Cyclonic Air Exhausting" principle to ensure uniform dry efficiency. All these models are particularly for optics.

    Practical New Patent for Stainless Hopper Dryers
    Patent No:ZL 201120302379.3

    One Unit Design Plastic Resin Dryers , Stainless Steel Dryer THD Series
    Features

    ◆ Double - layer stainless steel hopper dryer features with superior temperature keeping to improve energy saving greatly.
    ◆ The material inlet lid of hopper is equipped for easy installation of auto loader.
    ◆ Drying under the principle of hot air down- blowing and cyclone air exhausting result in consistent drying effects evenly.
    ◆ Adjustable overheat safety thermostat.
    ◆ Main power isolator externally installed as standard.
    ◆ Hopper barrel is fitted with see-through windows to observe inside material level.
    ◆ Hopper barrel separated from its base for easy cleaning .Safety device with overheat and overload protection.
    ◆ 24 hours auto start/stop timers as standard.

    One Unit Design Plastic Resin Dryers , Stainless Steel Dryer THD Series

    ModelTHD-6DTTHD-12DTTHD-25DTTHD-50DTTHD-75DTTHD-100DTTHD-150DTTHD-200DTTHD-300DTTHD-400DTTHD-500DTTHD-600DTTHD-800DTTHD-1000DTTHD-1500DTTHD-2000DTTHD-2400DT
    hopper capacityKG6122550751001502003004005006008001000150020002400
    blower powerW7575135155210215320320340340340100015001500220022003700
    Heater powerKW.91.83.04.04.06.09.012.015.018.021.021.024.032.048.048.032.0
    Dryer Temp150℃ ( 150~180℃ by Option)
    Outlet sizeInch1.51.51.5222.52.52.5333445556
    Inside hoppermm2102502873874224575126076707608569009001000120012001400
    Outside hoppermm2532933304304655005956907548449409859441050125012501500
    Flange ID diamm4040505065656576100100100100110110110110110
    Flange PCD diamm9060125X125130X130130X131130X132130X133150X200210X250210X250200200200200200210X250
    Flange OD diamm120120X120175X175175X176175X177175X178175X179175X180175X181180X245180X245250X300230230230230250X230
    Blower PCD Diamm70136163208254270
    Blower OD diamm100148180220270300
    Power supplyV380V AC3P/PE 50HZ
    Control voltageV220V AC1P/PE 50HZ
    Total PowerKW12.13.44.44.46.49.512.515.518.521.522.525.533.850.550.636
    wires specificationmm25X1.55X2.54X4+1X2.54X6+1X44X10+1X63X16+2X103X25+2X163X16+2X10
    wires cable LengthM5

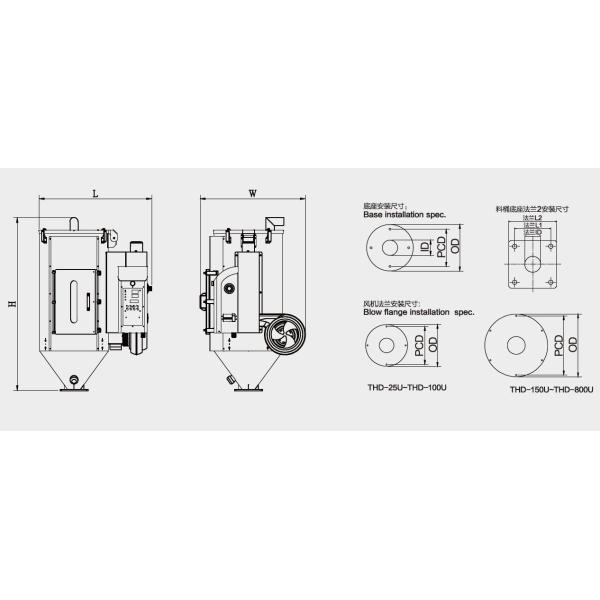

    Outside DimensionsL (m)0.490.5250.6050.7150.740.80.951.051.141.26.1.361.491.861.351.551.552.18
    W (m)0.360.360.570.660.670.690.850.90.910.981.051.11.251.051.251.251.62
    H (m)0.550.650.881.091.261.3851.551.641.761.862.022.572.752.52.83.34.11
    Total weightkg303047636595130155186225260280320380500580650
    Optional Accessories

    1. Magnetic Seat. 2.Hopper Magnet 3.Hot air recycler 4. Exhaust air filter 5. Type floor stands 6. A type floor stands 7. Material suchion box
